The new Greeves Pathfinder is a step forward to the future from the Anglian replica that has been very successful with pre '65/70 trials riders. Pathfinder is another classic name from the past that Greeves used for their little 185cc engine trials bike. We have now re-introduced the name for our Trial/Greenlane/Road machine.

The Pathfinder is a pretty little machine incorporating some interesting modern features:

tank
Based on the award winning Anglian, the frame is modified to incorporate the disc calliper on the swinging arm.

The British Racing Green tank complete with logo has a capicity of approximately 3 gallons (13.638 Litres) for pre-mixed fuel.

Seat height is 36cm making the Pathfinder suitable for most riders, encouraging adequate ground contact whilst seated and safe handling in the event of an emergency.

The Pathfinder comes complete with 12 volt lighting, road/off road tyres, alloy mudguards and electric horn.

Specification

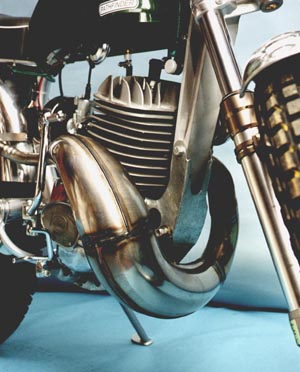

pathfinder engine
FrameSeamless Tubing, Colour Silver
EngineGreeves specification Type 37A air cooled single cylinder two stroke with alloy head and barrel
Bore/Stroke66 x 72mm
Capacity246cc
TransmissionChain primary and final drives. Four speed gearbox with standard gears
IgnitionElectronic
CrankshaftAlpha precision ground with coppered con rod needle roller bearing small end
CarburettorAmal concentric Mk 1


Front Fork Paioli as fitted to modern Trials and Enduro machines pathfinder front fork
Rear Suspension Swing arm and twin shock absorbers with 50lb or 60lb springs
Tyres Front - 2.75 x 21 Dunlop 801 (trial type)
Rear - 4.00 x 18 Dunlop 801 (trials type)
Brakes Front - 150mm disc with twin pot calliper
Rear - 100mm disc with single pot calliper
ClutchFriction/hydraulic
Seat height 36cm

pathfinder rear wheel
Wheel base53in (1350mm)
Fuel Tank British Racing Green - Approximate Capacity 3 gall (13.638 lt)
HandlebarsRenthal
MudguardsAlloy
Total Weight185lb approx
